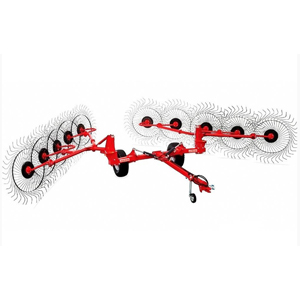

Trailed type carted rake has two single rake frames
operated by independent acting cylinders, which use
tractor hydraulics to raise and lower the finger wheels
from transport to field position. The tyne shape and
special steel used in manufacturing have been studied to
give them the best flexibility.The final result is a
fluffy windrow suitable to form an even and compact bale.
The two rake main frames, pivot and slide on the trolley
frame giving you the possibility of setting the rake
working width at your convenience, maintaining the optimum
inclination in respect to the crop you are raking. The
wide frame of the trolley allows for maximum stability of
the rake even in rough terrain.
| Technical Features |
Units |
Models |
| ACR-8 |
ACR-10 |
| Number of Wheel |
pcs |
8 |
10 |
| Number of Spring |
pcs |
320 |
400 |
| Total Length |
cm |
670 |
760 |
| Transport Width |
cm |
300 |
300 |
| Working Width |
cm |
520-610 |
520-700 |
| Weight |
kg |
590 |
660 |
| Tractor Power |
hp |
30 |
40 |
